Using a motor
using your servo motor:
(wiring Instructions below)
Check Battery Boxes
"Stealing Power" from an existing battery box
Reviewing Existing Drawing Robot Projects:

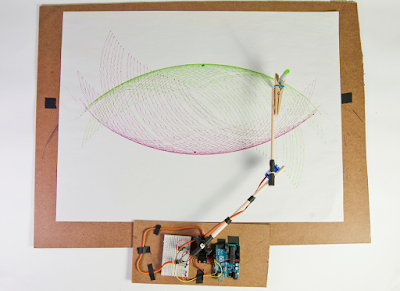

Pete Prodoehl's Arc-O-Matic
About Servo Motors
The position of the servo motor is set by the length of a pulse. The servo expects to receive a pulse roughly every 20 milliseconds. If that pulse is high for 1 millisecond, then the servo angle will be zero, if it is 1.5 milliseconds, then it will be at its centre position and if it is 2 milliseconds it will be at 180 degrees.
From Adafruit
The end points of the servo can vary and many servos only turn through about 170 degrees. You can also buy 'continuous' servos that can rotate through the full 360 degrees.
